Scalpel — Custom 26-inch H-D Road Glide built by Doug Keim Creative Cycles

DKCC V-Twin Customs — Customer Build

Scalpel

A 26-inch custom H-D Road Glide built to ride — 150 RWHP, dual perimeter Wilwood brakes, Baker 7-speed, and a finish that stops traffic.

150

Rear Wheel HP

150 ft-lb

Rear Wheel TQ

26"

Front Wheel

Baker 7-Speed

Transmission

A Long Time Coming

Some builds start with a phone call. This one started with years of conversation. The owner had been coming in and out of Creative Cycles for a long time — attending television show filmings at the shop and on location, spending time around the bikes, talking with Doug. He was a genuine enthusiast with a serious collection: multiple cars of every type, a stable of high-end and rare motorcycles. He knew what he liked, and he knew what he wanted.

When the day finally came and he sat down with Doug to talk about building a Harley-Davidson Road Glide, the ideas came fast. A brand new Road Glide was purchased and dropped off at DKCC. And so it began.

The 26" Wheel — Built to Actually Ride

The concept was clear from the start: a 26-inch front wheel, but nothing larger. This wasn't a show bike destined for a trailer. The owner intended to ride it, and that single decision shaped everything that followed.

A 26-inch wheel demands serious stopping power. That opened the door for something Doug loves — perimeter-mounted brakes. As seen on many of his builds over the years, the decision was made to run dual front perimeter rotors with custom Wilwood calipers. The result is a braking system that matches the visual drama of the wheel with genuine performance capability.

The Engine & Driveline

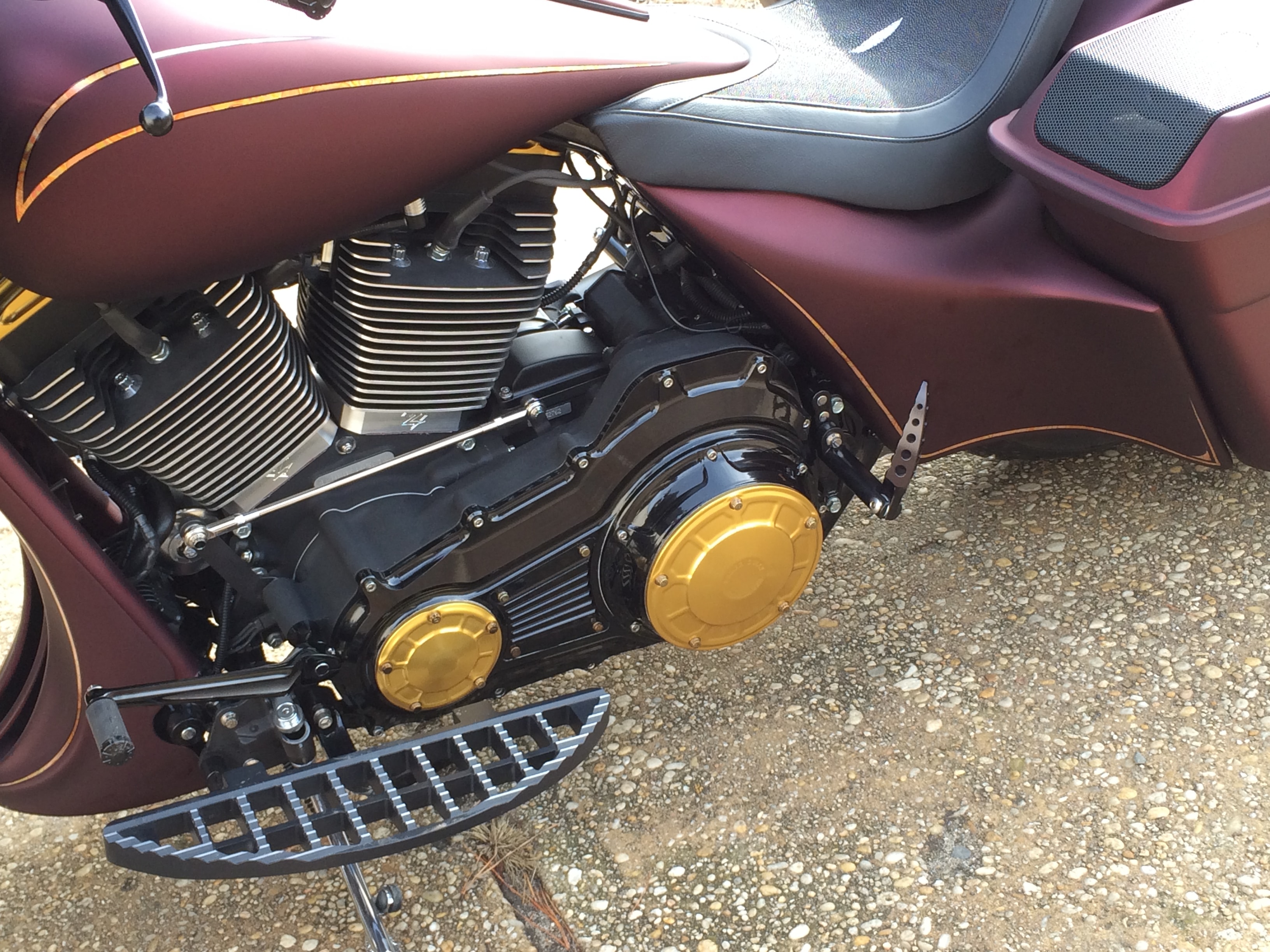

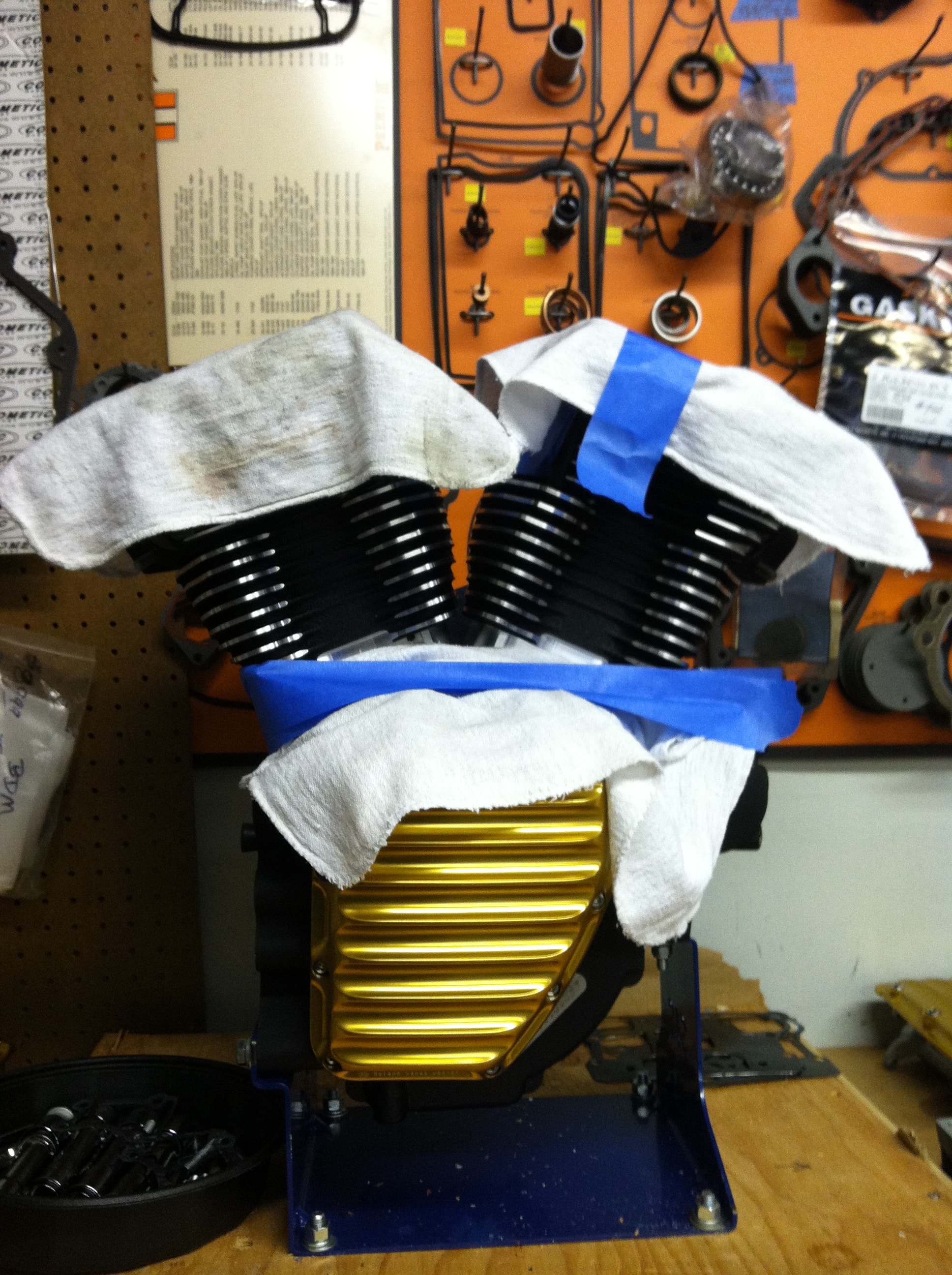

With the wheel and brake package sorted, Doug turned his attention to the heart of the build. A 120" DKCC/Zippers performance engine was built from the ground up — featuring cryo coatings and friction-reducing coatings applied internally throughout. The result: 150 rear-wheel horsepower and 150 ft-lb of torque. Power that matches the presence of that big front wheel.

A custom short side-exit exhaust was fabricated and finished in a custom Cerakote high-temp coating. A Baker billet primary cover was used along with a full complement of Baker components inside. The transmission is a Baker 7-speed — yes, seven speeds — with a Baker Plus One oil pan underneath. Final drive is chain.

Frame, Bodywork & the Details

The stock Harley-Davidson bagger frame was modified to accommodate the 26-inch front wheel. The fuel tank was reshaped to complement the refreshed styling. The seat is a one-off piece — a custom Costa Rican Richie StingRay hide seat, made specifically for this build.

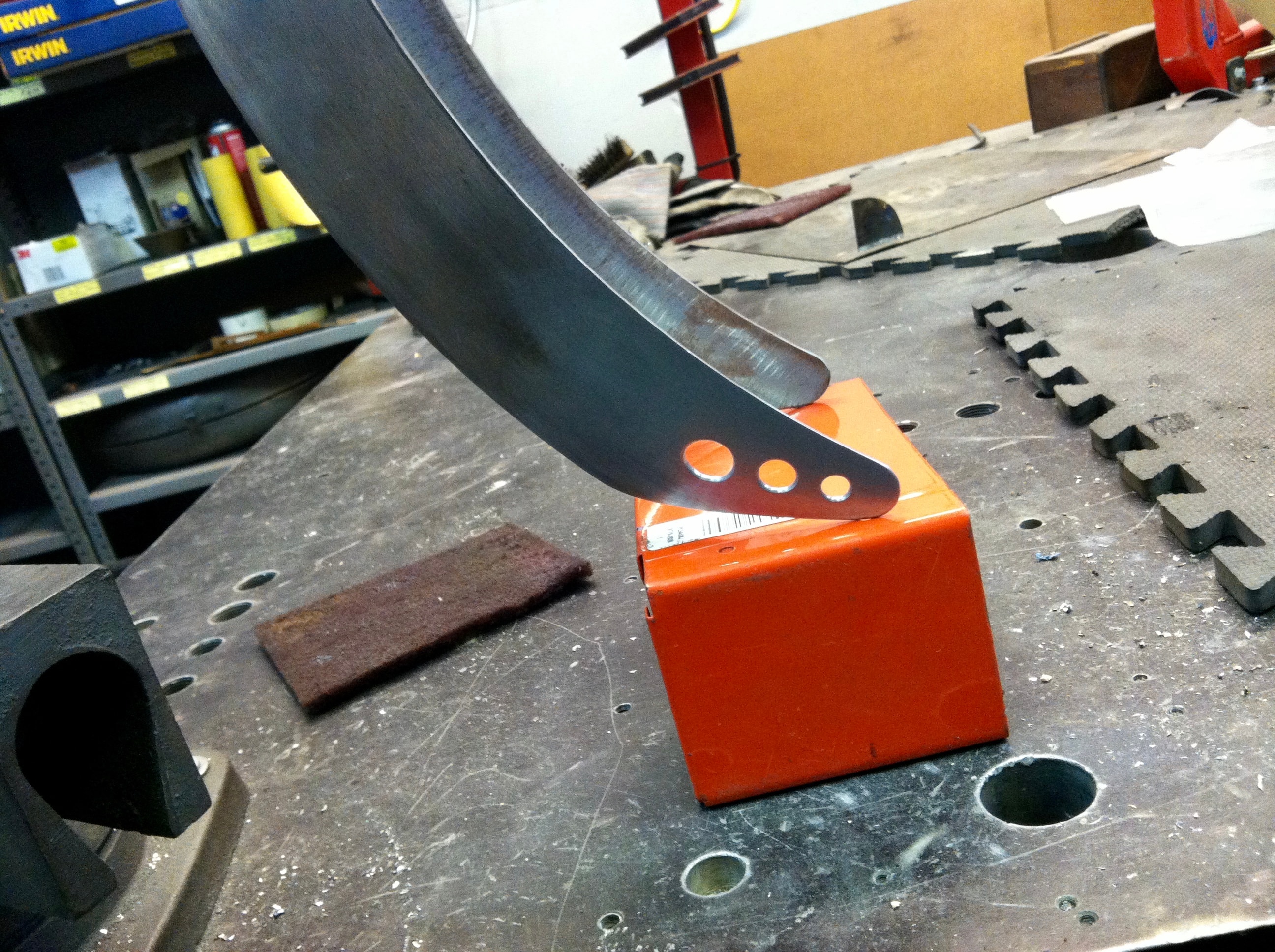

Then there are the details. Look at the rear of the front fender — three holes, precisely placed. The custom rear brake lever carries the same hole pattern. The one-off billet rear brake switch? Doug made it because he could. The rear fender hides nearly invisible LED lighting throughout. Every surface rewards a closer look.

The Finish

Scalpel wears a burgundy pearl with satin clear — a finish that comes alive in sunlight, shifting and popping in a way that photographs can only hint at. Over that, variegated gold leaf with hand-pulled pinstripe edges. Traditional craft applied to a thoroughly modern machine.

The result is a bike that has great looks, serious horsepower and torque, capable suspension, comfortable seating, and a riding position that works mile after mile. Built to be ridden. Built to be noticed. Built by Doug Keim.

Build Specs

Base
Harley-Davidson Road Glide (new)
Engine
120" DKCC/Zippers Performance
Coatings
Cryo + friction-reducing internal
Exhaust
Custom short side-exit, Cerakote
Primary
Baker billet cover + internals
Transmission
Baker 7-speed
Oil Pan
Baker Plus One
Final Drive
Chain
Front Wheel
26"
Front Brakes
Dual perimeter rotors, Wilwood calipers
Frame
Stock HD bagger — modified for 26"
Seat
Custom Costa Rican Richie StingRay hide
Rear Wheel HP
150
Rear Wheel TQ
150 ft-lb
Paint
Burgundy pearl, satin clear
Graphics
Variegated gold leaf, hand-pulled pinstripe

The Builder

Doug Keim has been building custom motorcycles since 1977. He established Creative Cycles and relocated the business and his family to Umatilla, FL in 2013, where he continues to craft world-class machines today. IMBBA Hall of Fame inductee. Hard Rock Casino National Build-Off champion. Two-time Artistry in Iron Las Vegas invitee.
